This document outlines the key steps and best practices to optimize Windows 10 and Windows 11 for audio production. Given the complexity of digital audio processing, tweaking your operating system (OS) for the specific demands of a Digital Audio Workstation (DAW) is crucial for minimizing latency, preventing glitches, and ensuring smooth performance. While general OS settings cater to a wide range of use cases, the following steps will help you optimize for audio performance without breaching any warranties or using unsupported practices. Ensure compliance with your hardware and software provider guidelines throughout.
1. Understanding Digital Audio and System Requirements
Before diving into system optimization, it’s important to understand digital audio’s processing fundamentals. In a DAW environment, audio is processed in real-time, making efficient CPU and RAM usage critical. The performance hinges on sample rate, buffer size, and bit depth settings.
Let’s define some terms:
• Buffering – the process of grouping samples into batches for processing.
• Buffer Size – the number of samples in one batch.
• Audio Cycle – the processing of one audio buffer.
• Latency – the time duration of the buffer.
Latency = BufferSize / SampleRate
BufferSize = Latency * SampleRate
- Sample Rate and Bit Depth: Ensure you are working with the optimal sample rate (typically 44.1kHz or 48kHz for most projects, though higher sample rates may be used for professional environments). The bit depth should be set to at least 16-bit, with 24-bit providing higher fidelity for professional work.
- Buffer Size: Reducing the buffer size minimizes latency but increases the CPU load. A larger buffer size (512 samples or 1024 samples or more) provides stability at the cost of higher latency. Adjust the buffer size based on project complexity, aiming for low latency (under 10ms is ideal) during recording and increasing it during mixing.
2. System Configuration for Audio Performance
To optimize Windows 10 or 11 for audio production, several system settings should be adjusted. It is crucial to follow manufacturer guidelines (e.g., from Microsoft, your motherboard manufacturer, or audio hardware providers like Avid or Native Instruments or UAD etc) to ensure that changes do not void warranties or impact system stability.
2.1 Power Management and CPU Optimization
Power settings can severely impact the performance of your DAW by throttling CPU usage when not configured correctly:
- High Performance Power Plan: Set your power plan to “High Performance.” This prevents the OS from downclocking the CPU or putting components (such as USB controllers or hard drives) into sleep mode. To do this, navigate to Control Panel > Power Options > High Performance
- Disable Turning Off Hard Disk: There are a number of reasons why you don’t want Windows to turn off the hard disk.
1. Mechanical hard drives can take a few seconds to spin up.
2. If you’re recording audio to, or streaming audio from (including using large disk based sample libraries) you need the hard drive running continuously.
3. A hard page fault (discussed later) on a powered off hard drive can completely stall audio processing until it’s fully powered up again.
4. Even for hard drives that you’re not actually using during performance, just the act of shutting down or powering up a drive can stall other processes.
Set “Turn off hard disk after” to 0 minutes to prevent Windows from doing this:

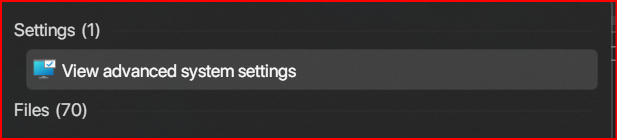

- Processor Scheduling: In Advanced System Settings, ensure that processor scheduling is optimized for background services rather than programs. This enhances the priority of audio tasks running in the background, especially for audio drivers.
- Core Parking: Disable core parking to ensure all CPU cores remain active during audio processing. Windows sometimes deactivates or “parks” CPU cores to save energy, which can lead to glitches in audio processing.
Navigate to the following registry key: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Power\PowerSettings\54533251-82be-4824-96c1-47b60b740d00\0cc5b647-c1df-4637-891a-dec35c318583
Change the "Attribute" key value from "1" to "0".
Then you should get the processor power options “Processor performance core min cores” from any power plan.
- PCI Express Link State Management: PCI Express is the main high-speed system bus that connects the CPU to various other components in your computer. Notably the PCI Express bus is the main connection between the CPU and the graphics card. The PCI Express standard defines various operating modes that control the balance between power saving and time to resume from a sleep state. We’re not interested in power savings, so set this to “Off”.
- Plug in your Laptop: If you are using a Laptop, ensure it is plugged into power. Windows reduces CPU performance when running on battery to conserve energy, which can negatively impact audio production
2.2 USB Power Management

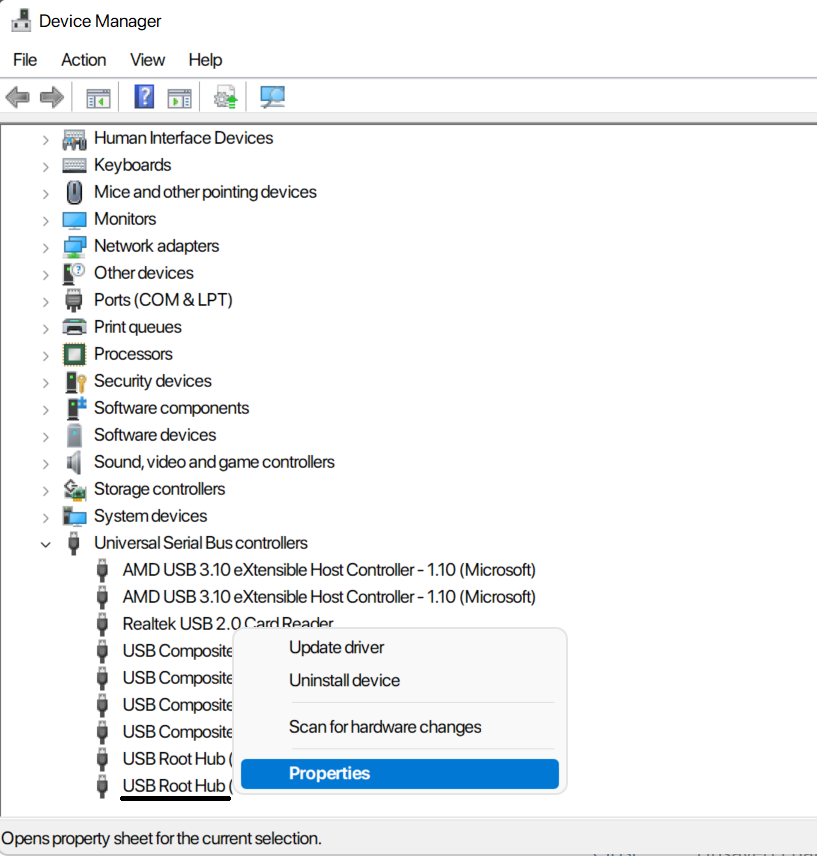

- Disable turning off USB Hubs: In Device Manager > Universal Serial Bus Controllers, disable the option “Allow the computer to turn off this device to save power” for each USB Root Hub. This ensures that connected USB devices, such as audio interfaces or MIDI controllers, do not lose connection during long recording or production sessions.
- Disable USB Selective Suspend
Almost every computer used for music performance is going to be using USB devices. Whether that’s music related devices like audio devices, USB/MIDI keyboards or typical PC devices like a keyboard or mouse you really don’t want these devices to be suspended while you’re playing. Even if you’re not using USB devices, you still should make this change. In fact it’s probably even more important– if you’re not using USB it’s more likely to be suspended and giving the device driver the opportunity to shut down could cause an undesirable stall.
In “USB Settings” -> “USB select suspend setting”, change the setting to “Disabled”.
2.3 Disabling Unnecessary Visual Effects
Windows, particularly Windows 11, comes with a variety of visual effects that enhance the graphical user experience but can take up valuable system resources. Disabling these will free up CPU and RAM for audio processing:
- Adjust for Best Performance: Go to Control Panel > System > Advanced System Settings > Performance Options and select “Adjust for best performance.” This turns off non-essential visual effects, such as animations and window transparency, which can hinder real-time audio performance. Here is what I personally use for my Audio Production PC.
2.4 Disabling Unnecessary Startup Programs and Services
Audio production requires as much free system memory and CPU capacity as possible. Disabling unnecessary startup applications ensures your DAW gets the highest priority:
- Task Manager: In Task Manager > Startup, disable programs that do not need to run during startup, such as messaging apps (Skype, Teams), cloud services (OneDrive, Dropbox), and other non-essential services.
- Service Configuration: Use msconfig to disable non-essential services that load with Windows. Be cautious not to disable critical system services that could affect the performance of the OS or other important functions.
3. Network and Internet Optimization
Many DAWs do not require an active internet connection. Network and internet activities can sometimes interfere with audio processing by consuming resources:
- Disable Wireless and Bluetooth Adapters: If not required, disable Wi-Fi and Bluetooth adapters during audio production to minimize potential interference with the audio stream. This is particularly important when performing live or recording with low buffer sizes.
- Disable Network-Related Services: In some cases, disabling services like Windows Update or cloud syncing tools during a session can prevent interruptions that might occur due to background downloads or sync processes. Ensure you re-enable these services after your session to maintain system security and updates.
4. Hardware Considerations
4.1 Optimizing Hard Drives and Storage
Efficient storage management can significantly impact DAW performance, especially with large sample libraries and audio files:

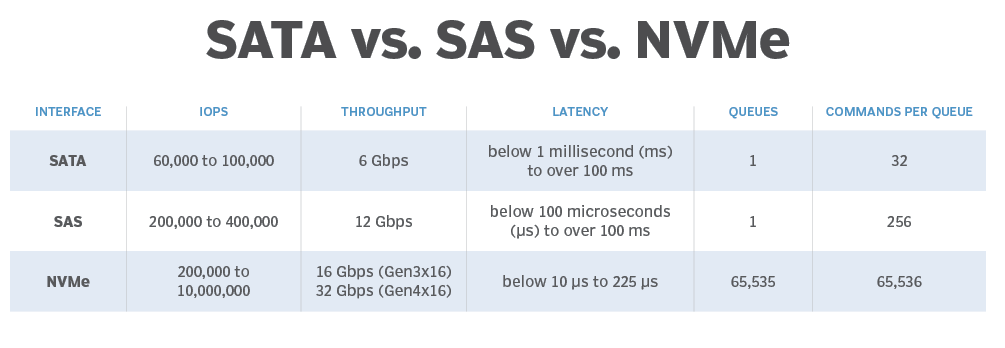

- SSD Optimization: For audio production, using an SSD (Solid State Drive) [SATA SSDs can not go beyond their limit while NVMe SSDs can go beyond 10 Gbps Read/Write speeds] for your DAW software and projects is highly recommended. SSDs provide faster data access, reducing load times and ensuring smooth playback and recording.
- Defragmentation: If using a traditional HDD, ensure regular defragmentation of the drive to optimize file access times. However, defragmentation should not be performed on SSDs, as it can reduce their lifespan. Some softwares like Iobit’s Defragmenting tool can perform “Trim” on SSDs.

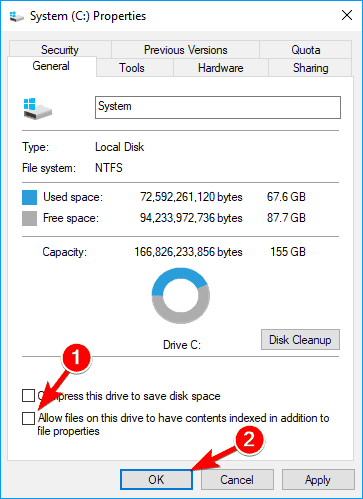

- Turn Off Indexing and Search Features: In Drive Properties, disable Windows indexing on drives used for audio projects. Indexing constantly scans your drive, which can interfere with real-time audio processing.
5. Security and Antivirus Settings
While security software is crucial, it can often interfere with DAW performance by scanning files or blocking essential audio operations:

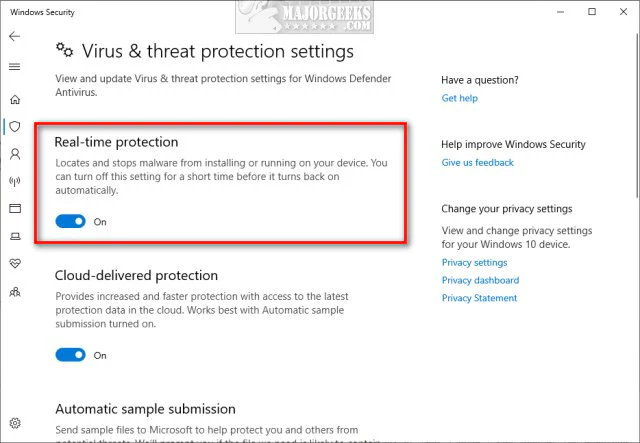

- Disable Real-Time Scanning: Temporarily disable real-time scanning from antivirus programs while working on audio projects. Make sure to only disable it when offline and re-enable it once you reconnect to the internet.
- Disable Controlled Folder Access: Windows 11 includes a feature called Controlled Folder Access, which restricts access to folders. Disable this if it interferes with your DAW writing data to specific directories.
6. Audio-Specific Optimizations
In addition to general system settings, specific optimizations for your audio drivers and DAW configuration can enhance performance:
- ASIO Drivers: Always use dedicated and native (as in if your Audio Interface is from RME, then use RME’s dedicated ASIO. If it is from UAD or NI or Focusrite or EVO, use their dedicated native ASIO drivers and not any 3rd party ASIO Drivers). ASIO (Audio Stream Input/Output) drivers for your audio interface, as they provide the lowest latency and are optimized for real-time audio processing.
- LatencyMon and DPC Monitoring: Use tools like LatencyMon to check for Deferred Procedure Call (DPC) issues, which can cause latency spikes or glitches. LatencyMon provides a detailed analysis of your system’s ability to handle real-time audio.
