Using the Chord Track in Studio One with UJAM Plugins

1. Introduction to the Chord Track in Studio One       Key Features of the Chord Track: 2. Setting Up Studio One with UJAM Plugins       Step-by-Step Setup: 3. Using the Chord Track with UJAM Plugins       Step-by-Step Usage: 4. Advanced Techniques with Chord Track and UJAM Plugins       Advanced Features: 5. Troubleshooting Common Issues 6. Conclusion



Studio One's Chord Track is one of the most powerful features for musicians, producers, and composers looking to experiment with harmonic progressions and arrangements. When paired with UJAM Plugins, this feature becomes even more dynamic, giving users the ability to automatically adjust their music production to various chord progressions. UJAM’s plugins like Virtual Guitarist, Virtual Pianist, and others are designed to react to chord information in real time, making it easier to create fully developed musical ideas quickly and intuitively.

This guide provides an in-depth explanation of how to use Studio One’s Chord Track in combination with UJAM Plugins, along with practical steps, tips, and advanced techniques to unlock your full creative potential.



1. Introduction to the Chord Track in Studio One

The Chord Track in Studio One is a tool that allows you to create and manipulate chord progressions that can automatically sync with MIDI and audio tracks in your project. This powerful feature helps users quickly experiment with different harmonic ideas, and it provides flexibility in adjusting and fine-tuning compositions.

The Chord Track is a global track (similar to the Arranger track) that provides the ability to perform "harmonic editing" of both Instrument and Audio Parts. This restructuring of chord progressions can affect an entire song, or only the Tracks of your choice. This lets you write musical content with a chord progression that appeals at the time, and make sweeping changes later, without exhaustive editing or re-recording of parts.

Key Features of the Chord Track:

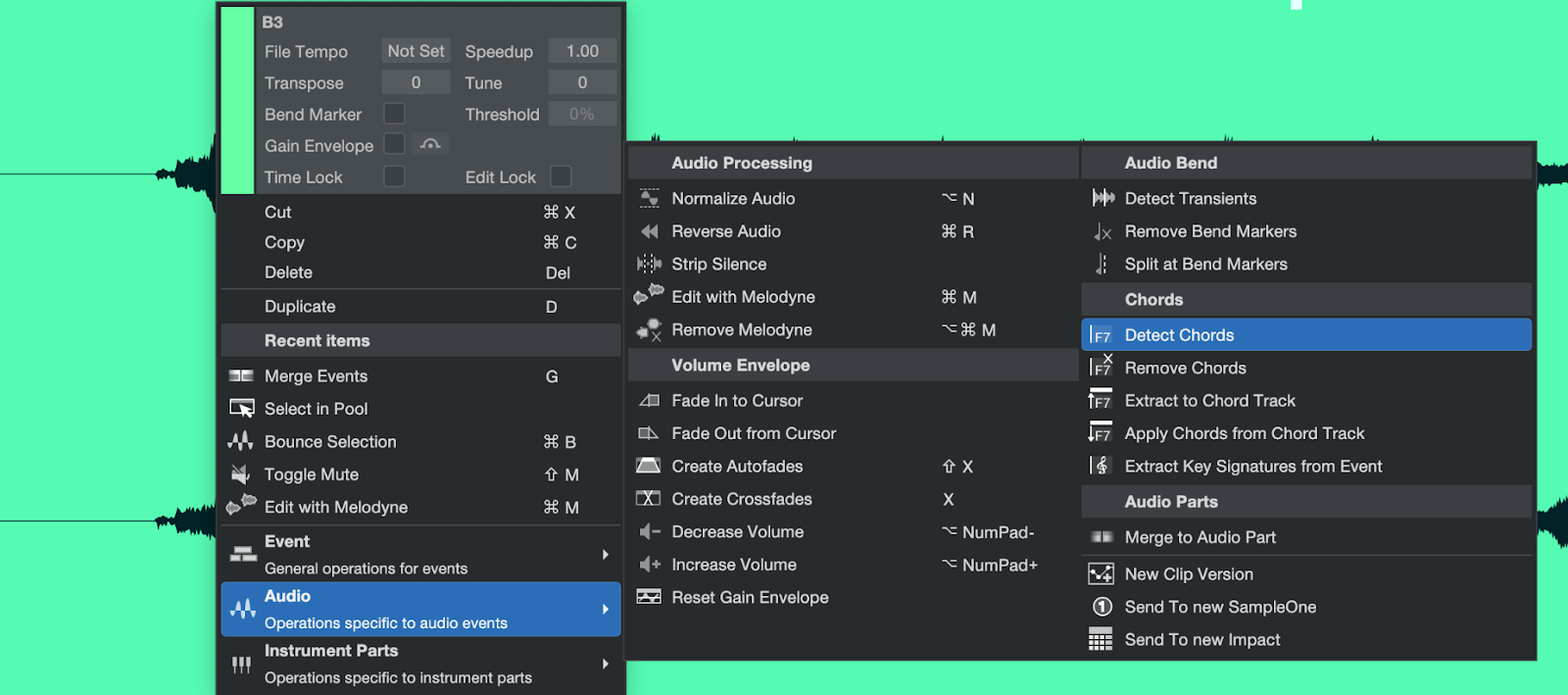

• Chord Detection: Studio One automatically analyzes the MIDI or audio track to detect and display the chords played in that track. This allows you to visually see the harmonic structure of your music.
• Real-Time Chord Editing: Once the chord track is created, you can easily modify the chords, change the chord progression, or experiment with different harmonies. These changes are reflected instantly throughout the entire project.
• Integration with Other Tracks: The Chord Track is not isolated – it can affect the entire project by applying the chord progressions to multiple tracks, including MIDI, audio, and virtual instruments, giving you a holistic view and control over your arrangement.
• Harmonic Editing: Users can perform harmonic editing in real time, making chord substitutions, transposing the entire progression, or adding new harmonic elements to enrich the sound.



2. Setting Up Studio One with UJAM Plugins

Before you start using the Chord Track with UJAM plugins, ensure both Studio One and UJAM’s virtual instruments are properly installed. Here’s how to set everything up correctly:

Step-by-Step Setup:

1. Install UJAM Plugins:
   • First, ensure that your UJAM plugins (e.g., Virtual Guitarist, Virtual Pianist, Virtual Drummer, etc.) are installed and activated in Studio One.
   • Open Studio One, go to Options > Locations > VST Plug-ins to check that UJAM plugins are listed correctly.
2. Load a UJAM Plugin:
   • Create a new instrument track in Studio One.
   • Insert a UJAM plugin, such as Virtual Guitarist or Virtual Pianist, on the instrument track.
   • These plugins are designed to automatically follow the chord progressions created by the Chord Track.
3. Enable the Chord Track:
   • To activate the Chord Track, go to Song > Chord Track in the top navigation bar of Studio One. This will create a new Chord Track where you can begin entering or editing chord progressions.
   • This track can now be used to control the harmonies for other tracks in your project, including those using UJAM plugins.

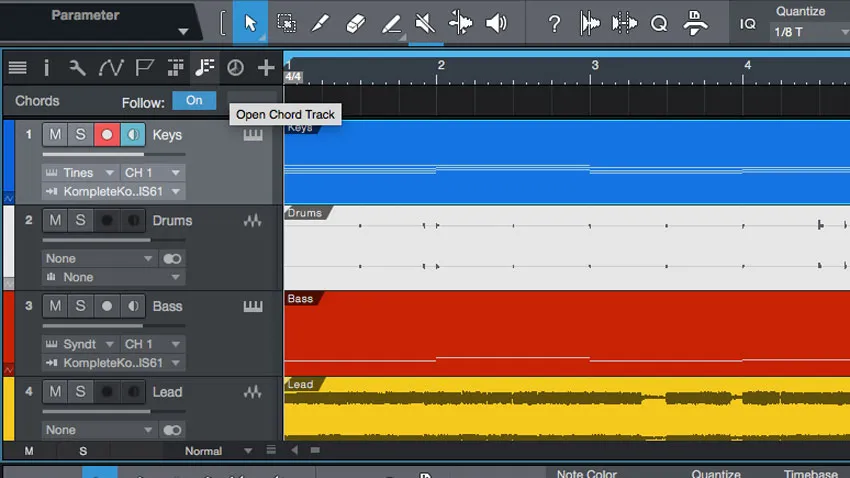

   • To show or hide the Chord Track, click this button above the Arrange view:   To toggle the effect of the Chord Track on or off for all affected Tracks, click the [Follow: On/Off] button



3. Using the Chord Track with UJAM Plugins

Once everything is set up, let’s dive into how the Chord Track interacts with UJAM Plugins to enhance your workflow and creativity.

Step-by-Step Usage:

1. Detecting and Adding Chords to the Chord Track:

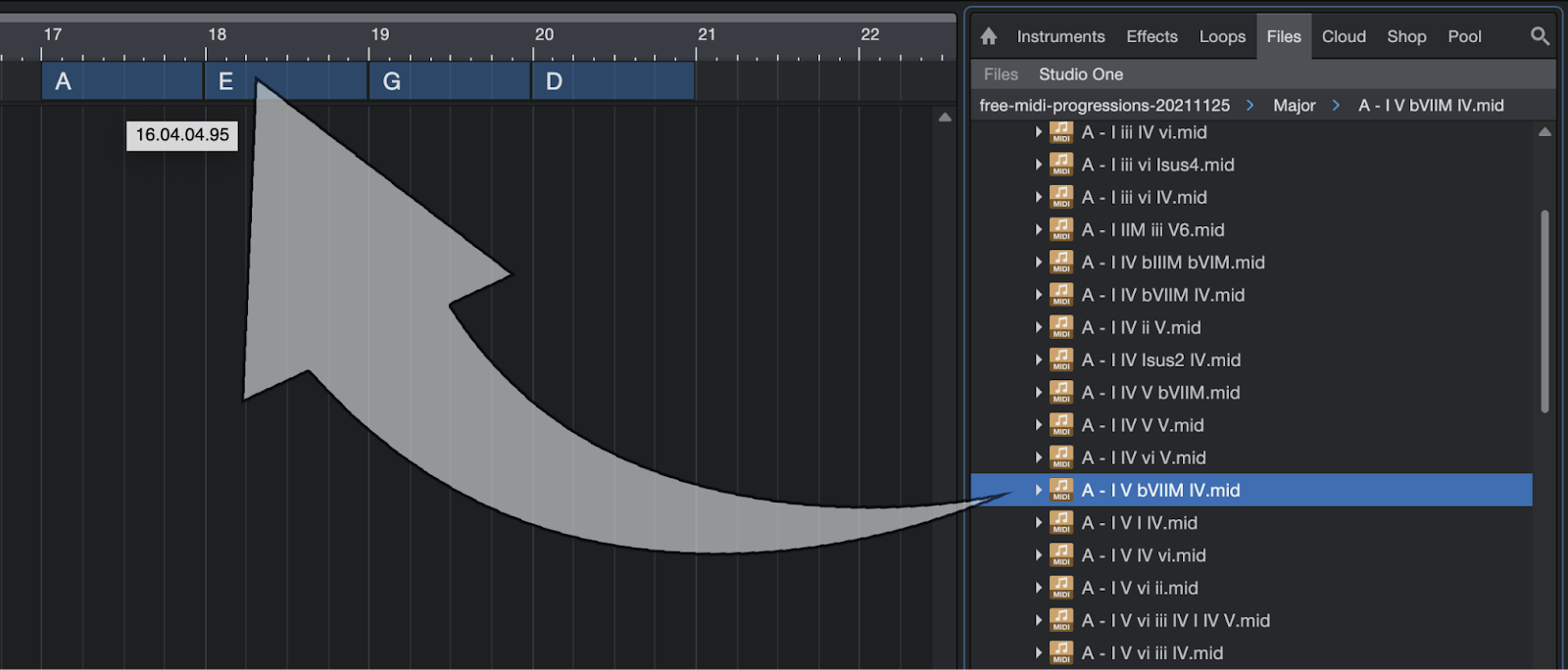

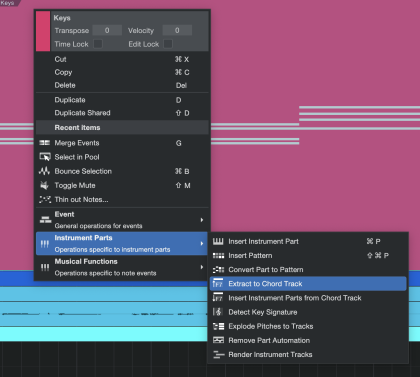

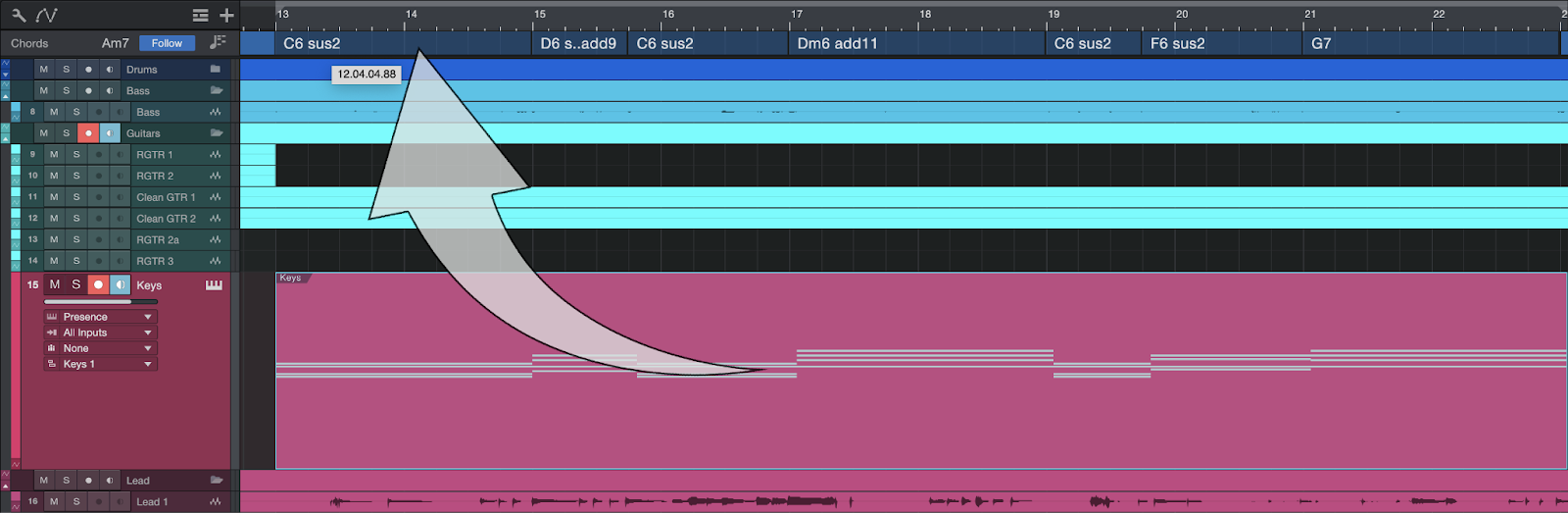

   • If you have an existing MIDI or audio track, drag it onto the Chord Track.

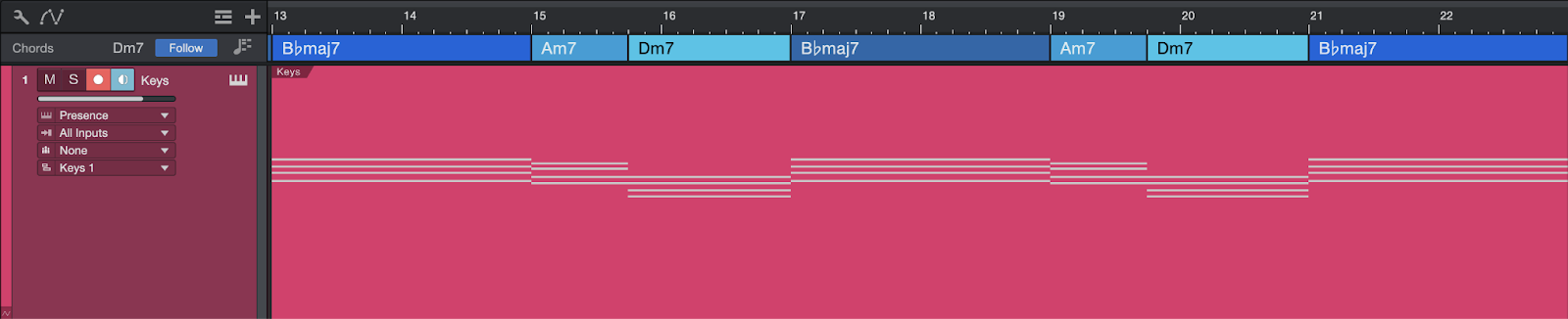

• • Studio One will analyze the track and automatically display the detected chords in the Chord Track. You’ll see the chord names appear as blocks that represent the harmonic content of your track.

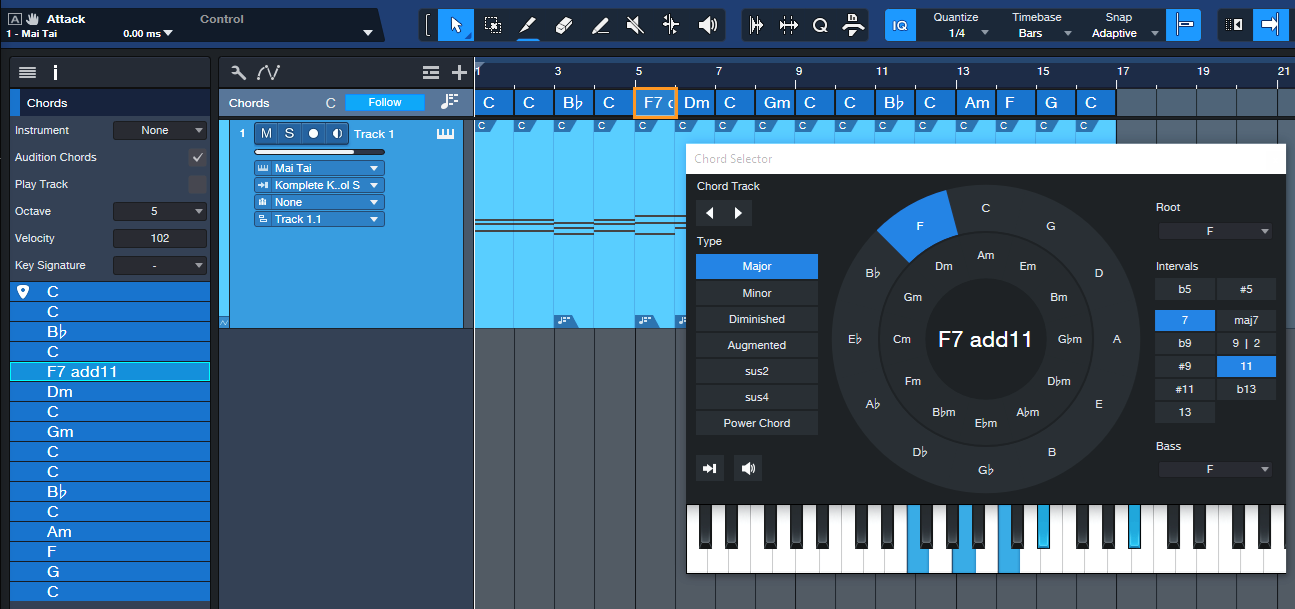

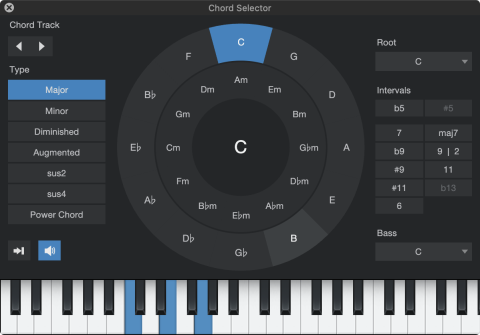

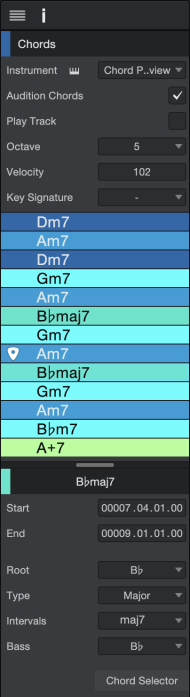

  • Alternatively, you can manually input a new chord progression into the Chord Track by clicking on the Chord Track and selecting from the Chord Palette.

2. Creating Chord Progressions:


   • You can build chord progressions by simply clicking on the Chord Track and adding chords in sequence. Studio One offers a wide variety of chords to choose from, and you can experiment with different chord types (e.g., major, minor, diminished, augmented).
   • As you add or change the chords, UJAM plugins will automatically adapt to these changes, adjusting the way they play their preset patterns and performance styles to match the new chord progression.
3. Applying the Chord Track to UJAM Plugins:
   • Once you have your chord progression set, ensure your UJAM plugin (such as Virtual Guitarist) is linked to the Chord Track.

   • UJAM plugins like Virtual Guitarist are designed to follow the Chord Track. As you play the chord progression, the plugin automatically adjusts its playing style, rhythm, and articulation to fit the chords, giving you a dynamic, professional-sounding performance. Make sure to select the appropriate “Follow Chords” mode.

Follow Chords

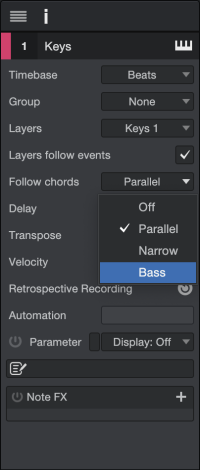

If you select a Track with the Inspector shown, you'll see its Follow Chords selector. This selector offers the following modes, each with its own style of operation:

1. Off: The default mode. The Chord Track has no effect on a Track in this mode.
2. Parallel: In this mode, chords in the affected track are shifted in parallel, aligning the root note of the musical content with the root of the target chord. This maintains chord note relationships in the musical content, which may result in some out-of-key notes.
3. Narrow: In this mode, notes in the affected Track are shifted to the nearest note in the current chord in the Chord Track.
4. Bass: This mode behaves the same as "parallel," but with special rules for the bass note: the source chord's bass note (or root if it has no bass note) is mapped to the target bass note or root.
5. Scale (Audio Tracks only): In this mode, notes in the affected track are snapped to the nearest scale note in the target chord.
6. Universal (Audio Tracks only): This mode does not require the use of the Detect Chords feature before use. In this mode, notes in the affected track are forced to follow the scale notes of the target chord.



• For example, when you change the progression from C Major to F Major, Virtual Guitarists will alter its strumming pattern or picking style to reflect the new chord.

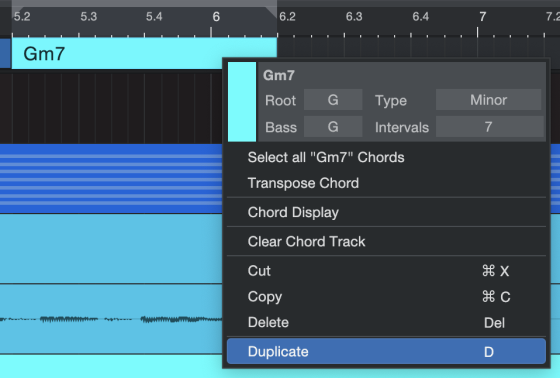

4. Editing Chord Progressions:


   • The Chord Track is extremely flexible, allowing you to change chord progressions in real time.
   • You can transpose the entire progression up or down, or you can replace individual chords. As you do so, UJAM plugins will automatically adjust their performance, following the updated progression.
   • Studio One’s Harmonic Editing feature allows you to swap chords, change voicings, or add extra notes to enhance the harmonic complexity. The UJAM plugin will immediately adapt to these edits, offering greater creative freedom.



4. Advanced Techniques with Chord Track and UJAM Plugins

After mastering the basic functionalities, you can explore some advanced techniques to maximize your use of the Chord Track and UJAM plugins.

Advanced Features:

1. Using Chord Voicings:


   • In addition to changing chords, Studio One allows you to adjust voicing (the arrangement of notes within the chord). This can give your music a richer, more varied sound.
   • UJAM plugins will react to these changes in voicing by modifying their performances, ensuring that they harmonize with your new voicing choices.
2. Creating Custom Harmonic Structures:


   • Use the Chord Track to build non-standard progressions or jazz-influenced structures, such as modal or extended chords (e.g., 7ths, 9ths, 11ths).
   • UJAM plugins, especially Virtual Pianist, are designed to adapt to complex harmonic content, making them perfect for experimenting with non-traditional chords.
3. Harmonic Editing:


   • With harmonic editing, you can adjust chord progressions by adding new chords, replacing them with alternatives, or simplifying them to suit your musical vision.
   • UJAM plugins will reflect these changes, adjusting their style, rhythm, and dynamics to complement the updated harmonic structure.
4. Utilizing Automation:
   • To make your composition even more dynamic, you can automate various parameters in UJAM plugins (e.g., performance intensity, tone, dynamics) along with the chord changes.
   • For example, you might automate the Virtual Guitarist’s strumming intensity to gradually increase as the chord progression builds, adding emotional depth to the composition.



5. Troubleshooting Common Issues

If you encounter any issues while using the Chord Track with UJAM plugins, here are some troubleshooting tips:

1. Incorrect Chord Detection:
   • If the Chord Track is not detecting the chords correctly, ensure your MIDI or audio source is clearly defined, with no overlapping notes or complex polyphonic textures. If using audio, make sure the recording is clear and free of heavy pitch drift.
2. UJAM Plugin Not Following Chord Changes:
   • Double-check that the UJAM plugin is properly set to follow the Chord Track. Some UJAM plugins may need to be specifically set to respond to the Chord Track’s output.
   • Ensure that MIDI routing is correctly configured so that the chord data from the Chord Track is being sent to the UJAM plugin.
3. Latency or Sync Issues:
   • If you experience timing issues, try adjusting your buffer size or latency settings within Studio One to improve performance. Lowering the buffer size may reduce latency but could put more strain on your CPU.

Please check these two articles about Performance Optimization:

Optimizing Windows for Audio Production: A Detailed Guide

Optimizing macOS for Audio Production: A Detailed Guide



6. Conclusion

The integration of Studio One’s Chord Track with UJAM Plugins creates a dynamic and flexible music production environment, offering musicians a seamless way to experiment with chords, harmonies, and arrangements. Whether you are writing a new song, remixing an existing track, or working on complex compositions, the Chord Track simplifies the harmonic process, while UJAM’s virtual instruments respond intelligently, making them powerful tools for music creation.

By following this guide and incorporating these techniques, you’ll be able to unlock new levels of creativity and efficiency in your music production, harnessing the full potential of Studio One and UJAM plugins to create polished, professional-sounding tracks effortlessly.
